| Stock | Delivery time |
|---|---|
| 9 | On workingdays before 13:00, shipped the same day |
| 330 | Shipped in 5 - 7 - Day(s) |
Ordered Before 13:00, shipped the same day
| Quantity | Per piece |
|---|---|
| 1+ | € 8,08 |
| 10+ | € 5,89 |
| 25+ | € 5,43 |
| 50+ | € 5,00 |
| 100+ | € 4,66 |
| 250+ | € 4,21 |
| 500+ | € 3,68 |
| 1000+ | € 3,22 |
| 10000+ | € 4,03 |
| In stock | Yes, 339 pcs |
| Article number | 71628 |
| Color 2 | Black |
| Minimum Order Qty | 2 |
| Model | TCN |
| Type | Oil Seal |
| Brand Types | |
| Dichtomatik | WASY |
| Eriks | RST-D |
| FP Paris | GAP |
| Freudenberg | BABSL |
| GOETZE | 827 SK |
| KACO | DGSP |
| Kimman | KAS-P |
| Kramp | BABSL |
| NOK | TCN |
| Sealsupply | OS-N21 |
| Stefa | CF |
| Taiwan | TCV |
| Design | |
| Material | NBR - Nitrile |
| Spring | Yes |
| Dust lip | Yes |
| Color | Black |
| Type | TCN High Pressure |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 100 |
| Outer Diameter | 120 |
| Height | 12 |
| DIN 3760 | 100x120x12 |
| Dimensions | 100 x 120 x 12 |

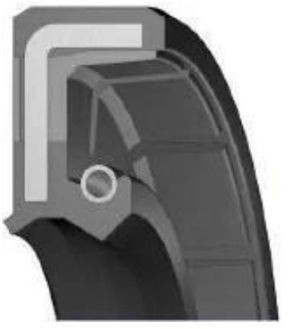

This Oil Seal has the following Dimensions: 100x120x12mm, and the color is Black. The Material of this item is NBR – Nitrile The Material of the house is . The model is Oil Seal TCN. The Article number of this Oil Seal 100 x 120 x 12 is 71628. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 120mm and in the color . The Hardness of this Oil Seal 100x120x12 TCN NBR - Nitrile Black OSS71628 is 100.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TCV and has an operating temperature range from TCN High Pressure to . O-rings 198660 are indicated as 71628 and have a DIN 3771 Size of 120. This item is equal to 100x120x12 and has an Approval. The chemical name of this Oring is Yes.
