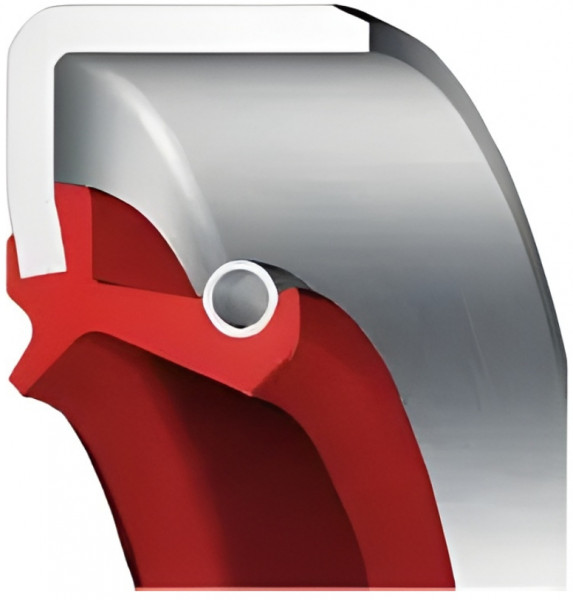

Oil Seal 110x135x13 TB VMQ - SILICONE Red OSS59762

Oil Seal 110x135x13 TB VMQ - SILICONE Red OSS59762
Rotation
Inside Diameter 110
Outer Diameter 135
Height 13
Material VMQ - SILICONE
Housing Material Steel
Material Spring Steel
Spring Yes
Dust lip Yes
Color Red
Item no. 59762
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
Article number 59762
Color 2Red
Minimum Order Qty2
ModelTB
TypeOil Seal
Brand Types
B+STR-D
Chicago RCRW1
DichtomatikWBS
EbeleB1SL
ElringBS
EriksMST
FP ParisL1P
FreudenbergB1 SL
GOETZE822 S
KACODFS
KimmanKBS
KrampBC
National47
NOKTB
PaulstraEEL
Pioneer WR6
SealsupplyOS-B11
StefaBC
TaiwanTB
VotaBSL
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
Material SpringSteel
SpringYes
Dust lipYes
ColorRed
TypeTB
Design information (Housing bore)
Housing RoughnessRa = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter110
Outer Diameter135
Height13
DIN 3760110x135x13
Dimensions110 x 135 x 13
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 110x135x13mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal TB. The Article number of this Oil Seal 110 x 135 x 13 is 59762. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 135mm and in the color Steel. The Hardness of this Oil Seal 110x135x13 TB VMQ - SILICONE Red OSS59762 is 110.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TB and has an operating temperature range from TB to . O-rings 6582017 are indicated as 59762 and have a DIN 3771 Size of 135. This item is equal to 110x135x13 and has an Steel Approval. The chemical name of this Oring is Yes.
