| Stock | Delivery time |
|---|---|
| 542 | Shipped in 35 - 42 - Day(s) |
Shipped in 35 - 42 - Day(s)
| Quantity | Per piece |
|---|---|
| 2+ | € 13,45 |
| 100+ | € 11,10 |
| 250+ | € 10,18 |
| 500+ | € 9,15 |
| In stock | Yes, 542 pcs |
| Article number | 47076 |
| Color 2 | Black |
| Minimum Order Qty | 10 |
| Model | DB |
| Type | Oil Seal |
| Brand Types | |
| Dichtomatik | WBD |
| Elring | BD |
| Eriks | M-DUO |
| Freudenberg | B1 DUO |
| GOETZE | 822 D |
| KACO | DFD |
| NOK | DB |
| Sealsupply | OS-D15 |
| Stefa | BK |
| Taiwan | DB |
| Design | |
| Material | NBR - Nitrile |
| Housing Material | Steel |
| Material Spring | Steel |
| Spring | Yes |
| Dust lip | No |
| Type | DB |
| Color | Black |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 120 |
| Outer Diameter | 150 |
| Height | 22 |
| DIN 3760 | 120x150x22 |
| Dimensions | 120 x 150 x 22 |

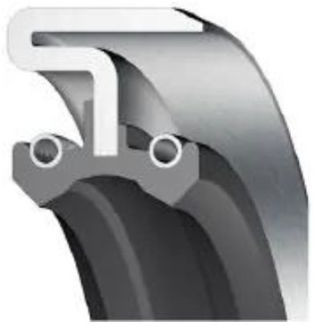

This Oil Seal has the following Dimensions: 120x150x22mm, and the color is Black. The Material of this item is NBR – Nitrile The Material of the house is Steel. The model is Oil Seal DB. The Article number of this Oil Seal 120 x 150 x 22 is 47076. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 150mm and in the color Steel. The Hardness of this Oil Seal 120x150x22 DB NBR - Nitrile Black OSS47076 is 120.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in DB and has an operating temperature range from DB to . O-rings 6526399 are indicated as 47076 and have a DIN 3771 Size of 150. This item is equal to 120x150x22 and has an Steel Approval. The chemical name of this Oring is Yes.
