| In stock | Yes, 115 pcs |
| Article number | 59763 |
| Color 2 | Red |
| Minimum Order Qty | 2 |
| Model | TB |
| Type | Oil Seal |
| Brand Types | |
| B+S | TR-D |
| Chicago R | CRW1 |
| Dichtomatik | WBS |
| Ebele | B1SL |
| Elring | BS |
| Eriks | MST |
| FP Paris | L1P |
| Freudenberg | B1 SL |
| GOETZE | 822 S |
| KACO | DFS |
| Kimman | KBS |
| Kramp | BC |
| National | 47 |
| NOK | TB |
| Paulstra | EEL |
| Pioneer W | R6 |
| Sealsupply | OS-B11 |
| Stefa | BC |
| Taiwan | TB |
| Vota | BSL |
| Design | |
| Material | VMQ - SILICONE |
| Housing Material | Steel |
| Material Spring | Steel |
| Spring | Yes |
| Dust lip | Yes |
| Color | Red |
| Type | TB |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 123.82 |
| Outer Diameter | 152.4 |
| Height | 12.7 |
| DIN 3760 | 123,82x152,4x12,7 |
| Dimensions | 123,82 x 152,4 x 12,7 |

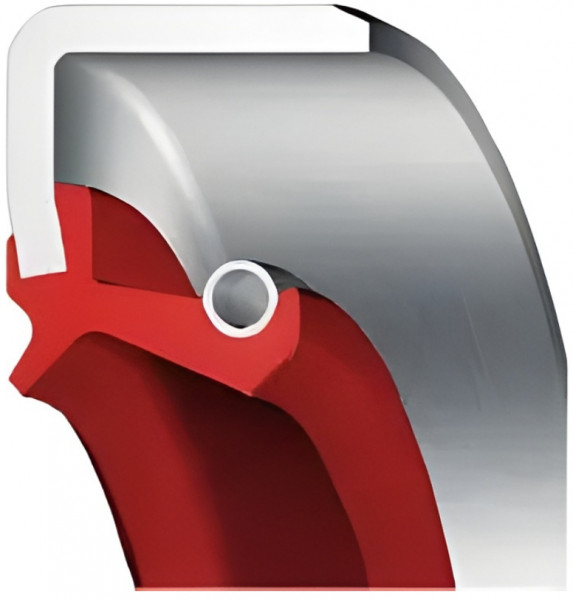

This Oil Seal has the following Dimensions: 123,82x152,4x12,7mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal TB. The Article number of this Oil Seal 123,82 x 152,4 x 12,7 is 59763. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 152.4mm and in the color Steel. The Hardness of this Oil Seal 123,82x152,4x12,7 TB VMQ - SILICONE Red OSS59763 is 123.82.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TB and has an operating temperature range from TB to . O-rings 6582080 are indicated as 59763 and have a DIN 3771 Size of 152.4. This item is equal to 123,82x152,4x12,7 and has an Steel Approval. The chemical name of this Oring is Yes.
