Deliverable from 02-01-2025
All items marked with a * are required.
| Quantity | Per piece |
|---|---|
| 1+ | € 14,35 |
| 5+ | € 10,40 |
| 10+ | € 9,58 |
| 25+ | € 8,71 |
| 50+ | € 8,26 |
| 100+ | € 7,47 |
| 250+ | € 6,48 |
| 500+ | € 5,70 |
| Article number | 71638 |
| Color 2 | Black |
| Minimum Order Qty | 2 |
| Model | TCN |
| Type | Oil Seal |
| Brand Types | |
| Dichtomatik | WASY |
| Eriks | RST-D |
| FP Paris | GAP |
| Freudenberg | BABSL |
| GOETZE | 827 SK |
| KACO | DGSP |
| Kimman | KAS-P |
| Kramp | BABSL |
| NOK | TCN |
| Sealsupply | OS-N21 |
| Stefa | CF |
| Taiwan | TCV |
| Design | |
| Material | NBR - Nitrile |
| Spring | Yes |
| Dust lip | Yes |
| Color | Black |
| Type | TCN High Pressure |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 125 |
| Outer Diameter | 155 |
| Height | 14 |
| DIN 3760 | 125x155x14 |
| Dimensions | 125 x 155 x 14 |

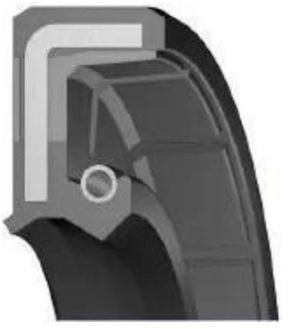

This Oil Seal has the following Dimensions: 125x155x14mm, and the color is Black. The Material of this item is NBR – Nitrile The Material of the house is . The model is Oil Seal TCN. The Article number of this Oil Seal 125 x 155 x 14 is 71638. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 155mm and in the color . The Hardness of this Oil Seal 125x155x14 TCN NBR - Nitrile Black OSS71638 is 125.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TCV and has an operating temperature range from TCN High Pressure to . O-rings 198670 are indicated as 71638 and have a DIN 3771 Size of 155. This item is equal to 125x155x14 and has an Approval. The chemical name of this Oring is Yes.
