Stock | Delivery time |
---|---|
91 | Shipped in 35 - 42 - Day(s) |
Shipped in 35 - 42 - Day(s)
Quantity | Per piece |
---|---|
2+ | € 12,98 |
100+ | € 10,95 |
250+ | € 10,05 |
500+ | € 9,03 |
In stock | Yes, 91 pcs |
Article number | 74491 |
Color 2 | Black |
Minimum Order Qty | 10 |
Model | TCN |
Type | Oil Seal |
Brand Types | |
Dichtomatik | WASY |
Eriks | RST-D |
FP Paris | GAP |
Freudenberg | BABSL |
GOETZE | 827 SK |
KACO | DGSP |
Kimman | KAS-P |
Kramp | BABSL |
NOK | TCN |
Sealsupply | OS-N21 |
Stefa | CF |
Taiwan | TCV |
Design | |
Material | NBR - Nitrile |
Spring | Yes |
Dust lip | Yes |
Color | Black |
Type | TCN High Pressure |
Design information (Housing bore) | |
Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
Housing Tolerance | ISO H8 |
Design information (Shaft) | |
Shaft Hardness | min. 45 HRC |
Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
Shaft Tolerance | ISO h11 |
Dimensions | |
Inside Diameter | 135 |
Outer Diameter | 170 |
Height | 14 |
DIN 3760 | 135x170x14 |
Dimensions | 135 x 170 x 14 |

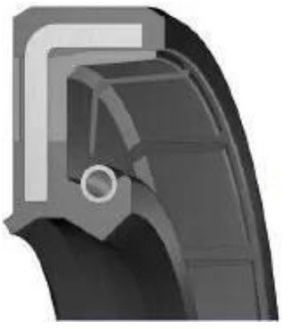

This Oil Seal has the following Dimensions: 135x170x14mm, and the color is Black. The Material of this item is NBR – Nitrile The Material of the house is . The model is Oil Seal TCN. The Article number of this Oil Seal 135 x 170 x 14 is 74491. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 170mm and in the color . The Hardness of this Oil Seal 135x170x14 TCN NBR - Nitrile Black OSS74491 is 135.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TCV and has an operating temperature range from TCN High Pressure to . O-rings 6526595 are indicated as 74491 and have a DIN 3771 Size of 170. This item is equal to 135x170x14 and has an Approval. The chemical name of this Oring is Yes.
