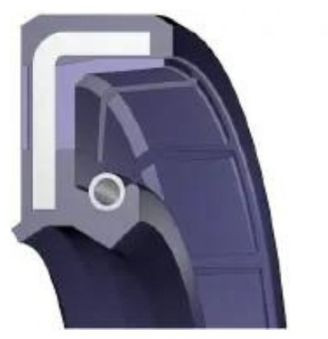

Oil Seal 140x160x8 TCN NBR - Nitrile Blue OSS73952

Oil Seal 140x160x8 TCN NBR - Nitrile Blue OSS73952
Rotation
Inside Diameter 140
Outer Diameter 160
Height 8
Material NBR - Nitrile
Spring Yes
Dust lip Yes
Color Blue
Item no. 73952
Stock 8 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
In stock Yes, 8 pcs
Article number 73952
Color 2Blue
Minimum Order Qty2
ModelTCN
TypeOil Seal
Brand Types
DichtomatikWASY
EriksRST-D
FP ParisGAP
FreudenbergBABSL
GOETZE827 SK
KACODGSP
KimmanKAS-P
KrampBABSL
NOKTCN
SealsupplyOS-N21
StefaCF
TaiwanTCV
Design
MaterialNBR - Nitrile
SpringYes
Dust lipYes
ColorBlue
TypeTCN High Pressure
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter140
Outer Diameter160
Height8
DIN 3760140x160x8
Dimensions140 x 160 x 8
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 140x160x8mm, and the color is Blue. The Material of this item is NBR – Nitrile The Material of the house is . The model is Oil Seal TCN. The Article number of this Oil Seal 140 x 160 x 8 is 73952. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 160mm and in the color . The Hardness of this Oil Seal 140x160x8 TCN NBR - Nitrile Blue OSS73952 is 140.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TCV and has an operating temperature range from TCN High Pressure to . O-rings 518947 are indicated as 73952 and have a DIN 3771 Size of 160. This item is equal to 140x160x8 and has an Approval. The chemical name of this Oring is Yes.
