| Stock | Delivery time |
|---|---|
| 1.103 | Shipped in 35 - 42 - Day(s) |
Shipped in 35 - 42 - Day(s)
| Quantity | Per piece |
|---|---|
| 21+ | € 2,35 |
| 100+ | € 1,58 |
| 250+ | € 1,45 |
| 500+ | € 1,31 |
| In stock | Yes, 1103 pcs |
| Article number | 74510 |
| Color 2 | Black |
| Minimum Order Qty | 10 |
| Model | TCN |
| Type | Oil Seal |
| Brand Types | |
| Dichtomatik | WASY |
| Eriks | RST-D |
| FP Paris | GAP |
| Freudenberg | BABSL |
| GOETZE | 827 SK |
| KACO | DGSP |
| Kimman | KAS-P |
| Kramp | BABSL |
| NOK | TCN |
| Sealsupply | OS-N21 |
| Stefa | CF |
| Taiwan | TCV |
| Design | |
| Material | NBR - Nitrile |
| Spring | Yes |
| Dust lip | Yes |
| Color | Black |
| Type | TCN High Pressure |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 14 |
| Outer Diameter | 22 |
| Height | 6 |
| DIN 3760 | 14x22x6 |
| Dimensions | 14 x 22 x 6 |

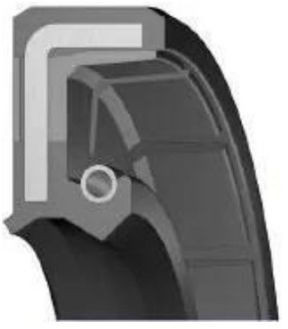

This Oil Seal has the following Dimensions: 14x22x6mm, and the color is Black. The Material of this item is NBR – Nitrile The Material of the house is . The model is Oil Seal TCN. The Article number of this Oil Seal 14 x 22 x 6 is 74510. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 22mm and in the color . The Hardness of this Oil Seal 14x22x6 TCN NBR - Nitrile Black OSS74510 is 14.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TCV and has an operating temperature range from TCN High Pressure to . O-rings 6526639 are indicated as 74510 and have a DIN 3771 Size of 22. This item is equal to 14x22x6 and has an Approval. The chemical name of this Oring is Yes.
