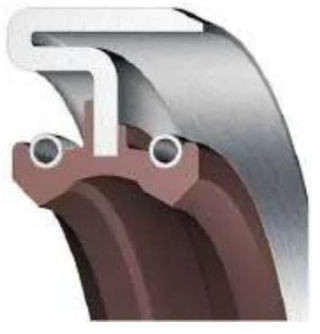

Oil Seal 15x24x7 DB FPM - Viton Brown OSS46646

Oil Seal 15x24x7 DB FPM - Viton Brown OSS46646
Rotation
Inside Diameter 15
Outer Diameter 24
Height 7
Material FPM - VITON
Housing Material Steel
Spring Yes
Material Spring Steel
Dust lip No
Item no. 46646
Stock 77 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
In stock Yes, 77 pcs
Article number 46646
Color 2Brown
Minimum Order Qty2
ModelDB
TypeOil Seal
Brand Types
DichtomatikWBD
ElringBD
EriksM-DUO
FreudenbergB1 DUO
GOETZE822 D
KACODFD
NOKDB
SealsupplyOS-D15
StefaBK
TaiwanDB
Design
MaterialFPM - VITON
Housing MaterialSteel
Material SpringSteel
SpringYes
Dust lipNo
TypeDB
ColorBrown
Design information (Housing bore)
Housing RoughnessRa = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter15
Outer Diameter24
Height7
DIN 376015x24x7
Dimensions15 x 24 x 7
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 15x24x7mm, and the color is Brown. The Material of this item is FPM - VITON The Material of the house is Steel. The model is Oil Seal DB. The Article number of this Oil Seal 15 x 24 x 7 is 46646. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 24mm and in the color Steel. The Hardness of this Oil Seal 15x24x7 DB FPM - Viton Brown OSS46646 is 15.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in DB and has an operating temperature range from DB to . O-rings 329627 are indicated as 46646 and have a DIN 3771 Size of 24. This item is equal to 15x24x7 and has an Steel Approval. The chemical name of this Oring is Yes.
