| Stock | Delivery time |
|---|---|
| 1.417 | On workingdays before 13:00, shipped the same day |
Ordered Before 13:00, shipped the same day
| Quantity | Per piece |
|---|---|
| 24+ | € 2,00 |
| 1000+ | € 0,95 |
| 2500+ | € 0,89 |
| 5000+ | € 0,74 |
| In stock | Yes, 1417 pcs |
| Article number | 46831 |
| Color 2 | Green |
| Minimum Order Qty | 10 |
| Model | DB |
| Type | Oil Seal |
| Brand Types | |
| Dichtomatik | WBD |
| Elring | BD |
| Eriks | M-DUO |
| Freudenberg | B1 DUO |
| GOETZE | 822 D |
| KACO | DFD |
| NOK | DB |
| Sealsupply | OS-D15 |
| Stefa | BK |
| Taiwan | DB |
| Design | |
| Material | NBR - Nitrile |
| Housing Material | Steel |
| Material Spring | Steel |
| Spring | Yes |
| Dust lip | No |
| Type | DB |
| Color | Green |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 15 |
| Outer Diameter | 24 |
| Height | 7 |
| DIN 3760 | 15x24x7 |
| Dimensions | 15 x 24 x 7 |

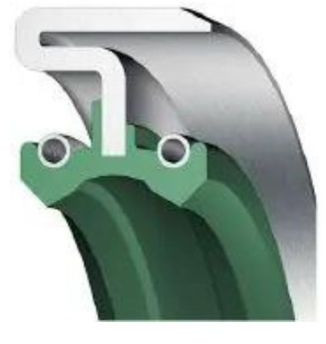

This Oil Seal has the following Dimensions: 15x24x7mm, and the color is Green. The Material of this item is NBR – Nitrile The Material of the house is Steel. The model is Oil Seal DB. The Article number of this Oil Seal 15 x 24 x 7 is 46831. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 24mm and in the color Steel. The Hardness of this Oil Seal 15x24x7 DB NBR - Nitrile Green OSS46831 is 15.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in DB and has an operating temperature range from DB to . O-rings 374199 are indicated as 46831 and have a DIN 3771 Size of 24. This item is equal to 15x24x7 and has an Steel Approval. The chemical name of this Oring is Yes.
