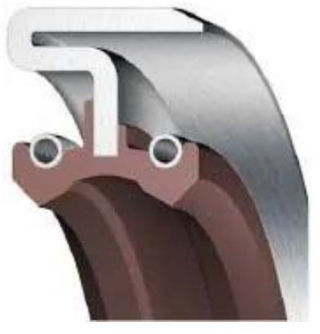

Oil Seal 15x26x7 DB FPM - Viton Brown OSS47188

Oil Seal 15x26x7 DB FPM - Viton Brown OSS47188
Rotation
Inside Diameter 15
Outer Diameter 26
Height 7
Material FPM - VITON
Housing Material Steel
Spring Yes
Material Spring Steel
Dust lip No
Item no. 47188
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
€ 9,25 Ex. VAT
€ 11,19 In. VAT

Deliverable from 02-01-2025
This product has a minimum order Qty of 3pcs, € 27,74

All items marked with a * are required.

Quantity Per piece
3+ € 9,25
5+ € 6,35
10+ € 5,75
25+ € 5,40
50+ € 4,89
100+ € 4,60
250+ € 5,57
Specifications
Article number 47188
Color 2Brown
Minimum Order Qty10
ModelDB
TypeOil Seal
Brand Types
DichtomatikWBD
ElringBD
EriksM-DUO
FreudenbergB1 DUO
GOETZE822 D
KACODFD
NOKDB
SealsupplyOS-D15
StefaBK
TaiwanDB
Design
MaterialFPM - VITON
Housing MaterialSteel
Material SpringSteel
SpringYes
Dust lipNo
TypeDB
ColorBrown
Design information (Housing bore)
Housing RoughnessRa = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter15
Outer Diameter26
Height7
DIN 376015x26x7
Dimensions15 x 26 x 7
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 15x26x7mm, and the color is Brown. The Material of this item is FPM - VITON The Material of the house is Steel. The model is Oil Seal DB. The Article number of this Oil Seal 15 x 26 x 7 is 47188. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 26mm and in the color Steel. The Hardness of this Oil Seal 15x26x7 DB FPM - Viton Brown OSS47188 is 15.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in DB and has an operating temperature range from DB to . O-rings 6526841 are indicated as 47188 and have a DIN 3771 Size of 26. This item is equal to 15x26x7 and has an Steel Approval. The chemical name of this Oring is Yes.
