| Stock | Delivery time |
|---|---|
| 8 | On workingdays before 13:00, shipped the same day |
| 137 | Shipped in 35 - 42 - Day(s) |
Ordered Before 13:00, shipped the same day
| Quantity | Per piece |
|---|---|
| 2+ | € 17,81 |
| 50+ | € 13,11 |
| 100+ | € 12,02 |
| 250+ | € 10,81 |
| In stock | Yes, 145 pcs |
| Article number | 74686 |
| Color 2 | Black |
| Minimum Order Qty | 10 |
| Model | TCN |
| Type | Oil Seal |
| Brand Types | |
| Dichtomatik | WASY |
| Eriks | RST-D |
| FP Paris | GAP |
| Freudenberg | BABSL |
| GOETZE | 827 SK |
| KACO | DGSP |
| Kimman | KAS-P |
| Kramp | BABSL |
| NOK | TCN |
| Sealsupply | OS-N21 |
| Stefa | CF |
| Taiwan | TCV |
| Design | |
| Material | NBR - Nitrile |
| Spring | Yes |
| Dust lip | Yes |
| Color | Black |
| Type | TCN High Pressure |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 160 |
| Outer Diameter | 185 |
| Height | 8 |
| DIN 3760 | 160x185x8 |
| Dimensions | 160 x 185 x 8 |

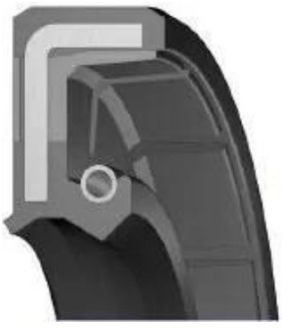

This Oil Seal has the following Dimensions: 160x185x8mm, and the color is Black. The Material of this item is NBR – Nitrile The Material of the house is . The model is Oil Seal TCN. The Article number of this Oil Seal 160 x 185 x 8 is 74686. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 185mm and in the color . The Hardness of this Oil Seal 160x185x8 TCN NBR - Nitrile Black OSS74686 is 160.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TCV and has an operating temperature range from TCN High Pressure to . O-rings 6527052 are indicated as 74686 and have a DIN 3771 Size of 185. This item is equal to 160x185x8 and has an Approval. The chemical name of this Oring is Yes.
