| Stock | Delivery time |
|---|---|
| 5 | On workingdays before 13:00, shipped the same day |
| 19 | Shipped in 5 - 7 - Day(s) |
Ordered Before 13:00, shipped the same day
| Quantity | Per piece |
|---|---|
| 1+ | € 23,91 |
| 3+ | € 19,79 |
| 5+ | € 18,70 |
| 10+ | € 16,43 |
| 25+ | € 15,65 |
| 50+ | € 16,17 |
| 100+ | € 13,56 |
| 250+ | € 12,00 |
| In stock | Yes, 24 pcs |
| Article number | 71648 |
| Color 2 | Blue |
| Minimum Order Qty | 2 |
| Model | TCN |
| Type | Oil Seal |
| Brand Types | |
| Dichtomatik | WASY |
| Eriks | RST-D |
| FP Paris | GAP |
| Freudenberg | BABSL |
| GOETZE | 827 SK |
| KACO | DGSP |
| Kimman | KAS-P |
| Kramp | BABSL |
| NOK | TCN |
| Sealsupply | OS-N21 |
| Stefa | CF |
| Taiwan | TCV |
| Design | |
| Material | NBR - Nitrile |
| Spring | Yes |
| Dust lip | Yes |
| Color | Blue |
| Type | TCN High Pressure |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 170 |
| Outer Diameter | 200 |
| Height | 12 |
| DIN 3760 | 170x200x12 |
| Dimensions | 170 x 200 x 12 |

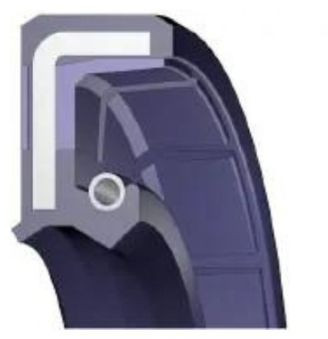

This Oil Seal has the following Dimensions: 170x200x12mm, and the color is Blue. The Material of this item is NBR – Nitrile The Material of the house is . The model is Oil Seal TCN. The Article number of this Oil Seal 170 x 200 x 12 is 71648. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 200mm and in the color . The Hardness of this Oil Seal 170x200x12 TCN NBR - Nitrile Blue OSS71648 is 170.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TCV and has an operating temperature range from TCN High Pressure to . O-rings 198680 are indicated as 71648 and have a DIN 3771 Size of 200. This item is equal to 170x200x12 and has an Approval. The chemical name of this Oring is Yes.
