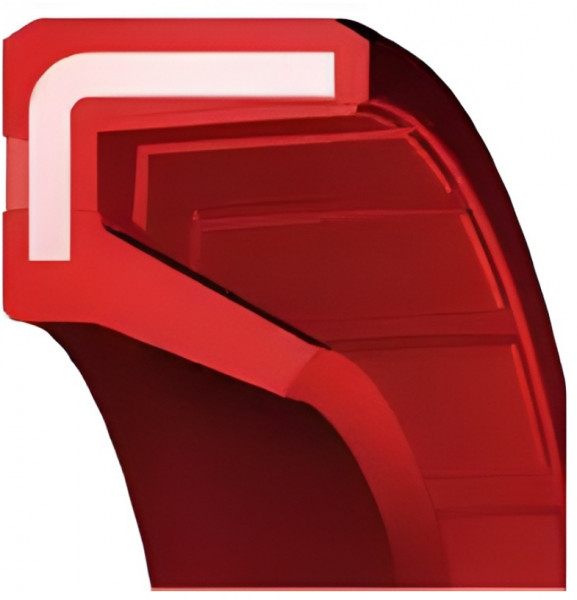

Oil Seal 20x32x4 VC VMQ - SILICONE Red OSS59791

Oil Seal 20x32x4 VC VMQ - SILICONE Red OSS59791
Rotation
Inside Diameter 20
Outer Diameter 32
Height 4
Material VMQ - SILICONE
Housing Material Steel
Color Red
Item no. 59791
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
Article number 59791
Color 2Red
Minimum Order Qty10
ModelVC
TypeOil Seal
Brand Types
DichtomatikWAO
ElringADF
EriksRZV
FP ParisGSM
FreudenbergBA OF
GacoSA
GOETZE827 NO
KACODE
KimmanKAOW
KrampCD
NOKVC
PaulstraIO
Pioneer WR26
RolfLSM
SealsupplyOS-A12
StefaCD
TaiwanVC
VotaAOF
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
ColorRed
TypeVC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter20
Outer Diameter32
Height4
DIN 376020x32x4
Dimensions20 x 32 x 4
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 20x32x4mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal VC. The Article number of this Oil Seal 20 x 32 x 4 is 59791. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 32mm and in the color Steel. The Hardness of this Oil Seal 20x32x4 VC VMQ - SILICONE Red OSS59791 is 20.The alternative names of the compound are and they are mostly produced by . The O-ring is commonly used in VC and has an operating temperature range from VC to . O-rings 6582399 are indicated as 59791 and have a DIN 3771 Size of 32. This item is equal to 20x32x4 and has an Approval. The chemical name of this Oring is .
