| Stock | Delivery time |
|---|---|
| 18 | On workingdays before 12:00, shipped the same day |
| 938 | Shipped in 35 - 42 - Day(s) |
Ordered Before 12:00, shipped the same day
| Quantity | Per piece |
|---|---|
| 18+ | € 2,73 |
| 100+ | € 1,83 |
| 250+ | € 1,68 |
| 500+ | € 1,51 |
| In stock | Yes, 956 pcs |
| Article number | 74515 |
| Color 2 | Black |
| Minimum Order Qty | 10 |
| Model | TCN |
| Type | Oil Seal |
| Brand Types | |
| Dichtomatik | WASY |
| Eriks | RST-D |
| FP Paris | GAP |
| Freudenberg | BABSL |
| GOETZE | 827 SK |
| KACO | DGSP |
| Kimman | KAS-P |
| Kramp | BABSL |
| NOK | TCN |
| Sealsupply | OS-N21 |
| Stefa | CF |
| Taiwan | TCV |
| Design | |
| Material | NBR - Nitrile |
| Spring | Yes |
| Dust lip | Yes |
| Color | Black |
| Type | TCN High Pressure |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 22.22 |
| Outer Diameter | 34.92 |
| Height | 7.93 |
| DIN 3760 | 22,22x34,92x7,93 |
| Dimensions | 22,22 x 34,92 x 7,93 |

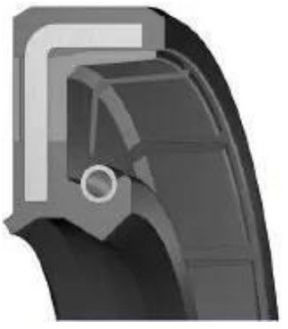

This Oil Seal has the following Dimensions: 22,22x34,92x7,93mm, and the color is Black. The Material of this item is NBR – Nitrile The Material of the house is . The model is Oil Seal TCN. The Article number of this Oil Seal 22,22 x 34,92 x 7,93 is 74515. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 34.92mm and in the color . The Hardness of this Oil Seal 22,22x34,92x7,93 TCN NBR - Nitrile Black OSS74515 is 22.22.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TCV and has an operating temperature range from TCN High Pressure to . O-rings 6526644 are indicated as 74515 and have a DIN 3771 Size of 34.92. This item is equal to 22,22x34,92x7,93 and has an Approval. The chemical name of this Oring is Yes.
