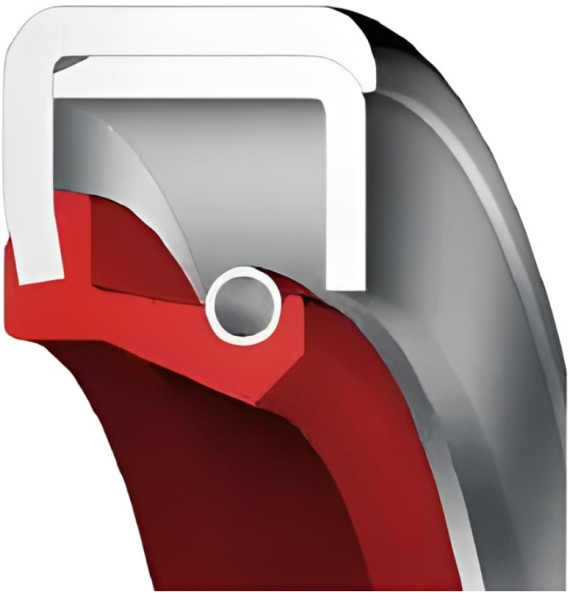

Oil Seal 22x40x10 SA VMQ - SILICONE Red OSS49696

Oil Seal 22x40x10 SA VMQ - SILICONE Red OSS49696
Rotation
Inside Diameter 22
Outer Diameter 40
Height 10
Material VMQ - SILICONE
Housing Material Steel
Material Spring Steel
Spring Yes
Dust lip No
Color Red
Item no. 49696
Stock 9 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
In stock Yes, 9 pcs
Article number 49696
Color 2Red
Minimum Order Qty2
ModelSA
TypeOil Seal
Brand Types
B+STR-B
Chicago RCRWH1
DichtomatikWC
EbeleB2
ElringC
EriksGV
FP ParisL2
FreudenbergB2
GOETZE824 N
KACODKF
KimmanKC
KrampDB
National45
NOKSA
PaulstraEEP
Pioneer WR1
RolfRC
SealsupplyOS-C10
StefaDB
TaiwanSA
VotaC
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
Material SpringSteel
SpringYes
Dust lipNo
ColorRed
TypeSA
Design information (Housing bore)
Housing RoughnessRa = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm
Housing ToleranceISO H1908
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter22
Outer Diameter40
Height10
DIN 376022x40x10
Dimensions22 x 40 x 10
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 22x40x10mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal SA. The Article number of this Oil Seal 22 x 40 x 10 is 49696. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 40mm and in the color Steel. The Hardness of this Oil Seal 22x40x10 SA VMQ - SILICONE Red OSS49696 is 22.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in SA and has an operating temperature range from SA to . O-rings 6580464 are indicated as 49696 and have a DIN 3771 Size of 40. This item is equal to 22x40x10 and has an Steel Approval. The chemical name of this Oring is Yes.
