| Quantity | Per piece |
|---|---|
| 1+ | € 32,94 |
| 1000+ | € 30,22 |
| 2500+ | € 27,45 |
| 5000+ | € 23,91 |
| Article number | 67013 |
| Color 2 | Blue |
| Minimum Order Qty | 10 |
| Model | TC |
| Type | Oil Seal |
| Brand Types | |
| B+S | TR-E |
| Chicago R | HMSA7 |
| Dichtomatik | WAS |
| Ebele | RP |
| Elring | AS |
| Eriks | RST |
| FP Paris | GP |
| Freudenberg | BASL |
| Gaco | FA |
| GOETZE | 827 S |
| KACO | DGS |
| Kimman | KAS |
| Kramp | CC |
| National | 32 |
| NOK | TC |
| Paulstra | IEL |
| Pioneer W | R23 |
| Rolf | RP |
| Sealsupply | OS-A11 |
| Stefa | CC |
| Taiwan | TC |
| Vota | ASL |
| Design | |
| Material | NBR - Nitrile |
| Housing Material | Steel |
| Material Spring | Steel |
| Spring | Yes |
| Dust lip | Yes |
| Color | Blue |
| Type | TC |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 240 |
| Outer Diameter | 270 |
| Height | 15 |
| Dimensions | 240 x 270 x 15 |
| DIN 3760 | 240x270x15 |

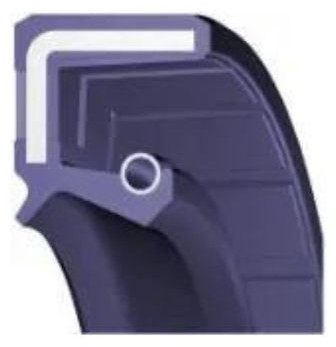

This Oil Seal has the following Dimensions: 240x270x15mm, and the color is Blue. The Material of this item is NBR – Nitrile The Material of the house is Steel. The model is Oil Seal TC. The Article number of this Oil Seal 240 x 270 x 15 is 67013. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 270mm and in the color Steel. The Hardness of this Oil Seal 240x270x15 TC NBR - Nitrile Blue OSS67013 is 240.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TC and has an operating temperature range from TC to . O-rings 300389 are indicated as 67013 and have a DIN 3771 Size of 270. This item is equal to 240x270x15 and has an Steel Approval. The chemical name of this Oring is Yes.
