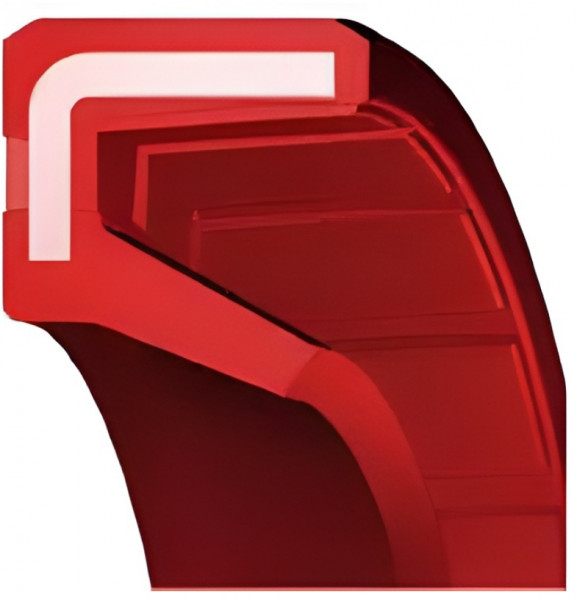

Oil Seal 24x30x4 VC VMQ - SILICONE Red OSS59794

Oil Seal 24x30x4 VC VMQ - SILICONE Red OSS59794
Rotation
Inside Diameter 24
Outer Diameter 30
Height 4
Material VMQ - SILICONE
Housing Material Steel
Color Red
Item no. 59794
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
Article number 59794
Color 2Red
Minimum Order Qty10
ModelVC
TypeOil Seal
Brand Types
DichtomatikWAO
ElringADF
EriksRZV
FP ParisGSM
FreudenbergBA OF
GacoSA
GOETZE827 NO
KACODE
KimmanKAOW
KrampCD
NOKVC
PaulstraIO
Pioneer WR26
RolfLSM
SealsupplyOS-A12
StefaCD
TaiwanVC
VotaAOF
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
ColorRed
TypeVC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter24
Outer Diameter30
Height4
DIN 376024x30x4
Dimensions24 x 30 x 4
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 24x30x4mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal VC. The Article number of this Oil Seal 24 x 30 x 4 is 59794. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 30mm and in the color Steel. The Hardness of this Oil Seal 24x30x4 VC VMQ - SILICONE Red OSS59794 is 24.The alternative names of the compound are and they are mostly produced by . The O-ring is commonly used in VC and has an operating temperature range from VC to . O-rings 6582406 are indicated as 59794 and have a DIN 3771 Size of 30. This item is equal to 24x30x4 and has an Approval. The chemical name of this Oring is .
