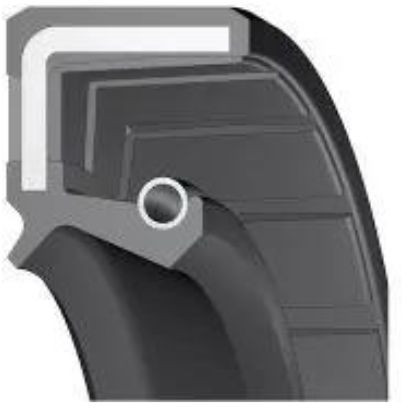

Oil Seal 24x45x10 TC EPDM Black OSS77474

Oil Seal 24x45x10 TC EPDM Black OSS77474
Rotation
Inside Diameter 24
Outer Diameter 45
Height 10
Material EPDM
Housing Material
Material Spring
Spring Yes
Dust lip Yes
Color Black
Item no. 77474
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
Article number 77474
Color 2Black
Minimum Order Qty10
ModelTC
TypeOil Seal
Brand Types
B+STR-E
Chicago RHMSA7
DichtomatikWAS
EbeleRP
ElringAS
EriksRST
FP ParisGP
FreudenbergBASL
GacoFA
GOETZE827S
KACODGS
KimmanKAS
KrampCC
National32
NOKTC
PaulstraIEL
Pioneer WR23
RolfRP
SealsupplyOS-A11
StefaCC
TaiwanTC
VotaASL
Design
MaterialEPDM
SpringYes
Dust lipYes
ColorBlack
TypeTC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter24
Outer Diameter45
Height10
Dimensions24 x 45 x 10
DIN 376024x45x10
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 24x45x10mm, and the color is Black. The Material of this item is EPDM The Material of the house is . The model is Oil Seal TC. The Article number of this Oil Seal 24 x 45 x 10 is 77474. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 45mm and in the color . The Hardness of this Oil Seal 24x45x10 TC EPDM Black OSS77474 is 24.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TC and has an operating temperature range from TC to . O-rings 6580494 are indicated as 77474 and have a DIN 3771 Size of 45. This item is equal to 24x45x10 and has an Approval. The chemical name of this Oring is Yes.
