| In stock | Yes, 699 pcs |
| Article number | 78851 |
| Color 2 | Red |
| Minimum Order Qty | 10 |
| Model | VC |
| Type | Oil Seal |
| Brand Types | |
| Dichtomatik | WAOK |
| Ebele | RZV |
| Eriks | RGZV |
| Freudenberg | BAOF |
| KACO | DE |
| Kimman | KAOW |
| NOK | VC |
| Sealsupply | OS-G12 |
| Stefa | CD |
| Taiwan | VC |
| Design | |
| Material | VMQ - SILICONE |
| Housing Material | Steel |
| Spring | No |
| Dust lip | No |
| Color | Red |
| Type | VC |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 25 |
| Outer Diameter | 35 |
| Height | 4 |
| DIN 3760 | 25x35x4 |
| Dimensions | 25 x 35 x 4 |

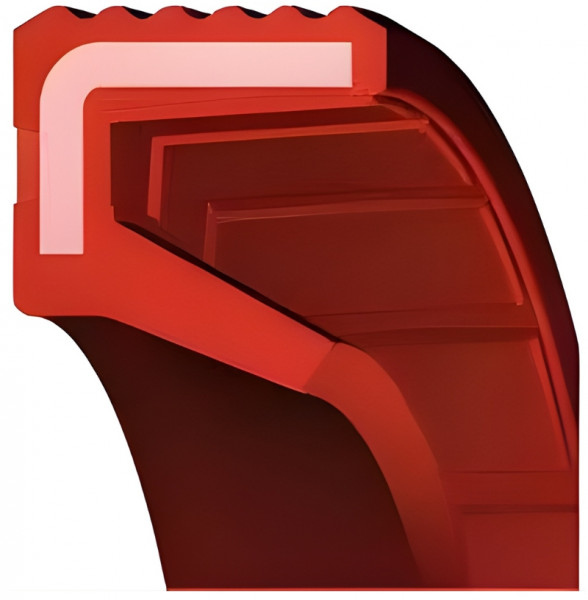

This Oil Seal has the following Dimensions: 25x35x4mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal VC. The Article number of this Oil Seal 25 x 35 x 4 is 78851. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 35mm and in the color Steel. The Hardness of this Oil Seal 25x35x4 VC VMQ - SILICONE Red OSS78851 is 25.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in VC and has an operating temperature range from VC to . O-rings 6582416 are indicated as 78851 and have a DIN 3771 Size of 35. This item is equal to 25x35x4 and has an Approval. The chemical name of this Oring is No.
