In stock | Yes, 23 pcs |
Article number | 49804 |
Color 2 | Red |
Minimum Order Qty | 2 |
Model | SA |
Type | Oil Seal |
Brand Types | |
B+S | TR-B |
Chicago R | CRWH1 |
Dichtomatik | WC |
Ebele | B2 |
Elring | C |
Eriks | GV |
FP Paris | L2 |
Freudenberg | B2 |
GOETZE | 824 N |
KACO | DKF |
Kimman | KC |
Kramp | DB |
National | 45 |
NOK | SA |
Paulstra | EEP |
Pioneer W | R1 |
Rolf | RC |
Sealsupply | OS-C10 |
Stefa | DB |
Taiwan | SA |
Vota | C |
Design | |
Material | VMQ - SILICONE |
Housing Material | Steel |
Material Spring | Steel |
Spring | Yes |
Dust lip | No |
Color | Red |
Type | SA |
Design information (Housing bore) | |
Housing Roughness | Ra = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm |
Housing Tolerance | ISO H1955 |
Design information (Shaft) | |
Shaft Hardness | min. 45 HRC |
Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
Shaft Tolerance | ISO h11 |
Dimensions | |
Inside Diameter | 260 |
Outer Diameter | 290 |
Height | 16 |
DIN 3760 | 260x290x16 |
Dimensions | 260 x 290 x 16 |

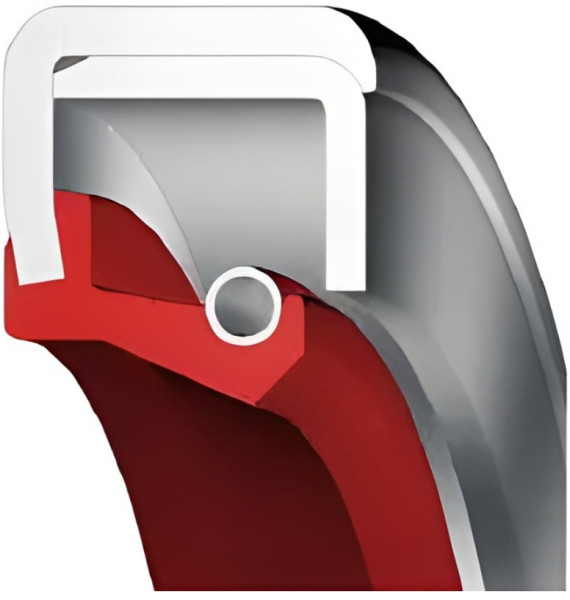

This Oil Seal has the following Dimensions: 260x290x16mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal SA. The Article number of this Oil Seal 260 x 290 x 16 is 49804. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 290mm and in the color Steel. The Hardness of this Oil Seal 260x290x16 SA VMQ - SILICONE Red OSS49804 is 260.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in SA and has an operating temperature range from SA to . O-rings 6582304 are indicated as 49804 and have a DIN 3771 Size of 290. This item is equal to 260x290x16 and has an Steel Approval. The chemical name of this Oring is Yes.
