| Stock | Delivery time |
|---|---|
| 1.238 | Shipped in 5 - 7 - Day(s) |
Shipped in 5 - 7 - Day(s)
| Quantity | Per piece |
|---|---|
| 36+ | € 1,31 |
| 1000+ | € 0,61 |
| 2500+ | € 0,55 |
| 5000+ | € 0,48 |
| In stock | Yes, 1238 pcs |
| Article number | 64859 |
| Color 2 | Black |
| Minimum Order Qty | 10 |
| Model | TC |
| Type | Oil Seal |
| Brand Types | |
| B+S | TR-E |
| Chicago R | HMSA7 |
| Dichtomatik | WAS |
| Ebele | RP |
| Elring | AS |
| Eriks | RST |
| FP Paris | GP |
| Freudenberg | BASL |
| Gaco | FA |
| GOETZE | 827 S |
| KACO | DGS |
| Kimman | KAS |
| Kramp | CC |
| National | 32 |
| NOK | TC |
| Paulstra | IEL |
| Pioneer W | R23 |
| Rolf | RP |
| Sealsupply | OS-A11 |
| Stefa | CC |
| Taiwan | TC |
| Vota | ASL |
| Design | |
| Material | NBR - Nitrile |
| Housing Material | Steel |
| Material Spring | Steel |
| Spring | Yes |
| Dust lip | Yes |
| Color | Black |
| Type | TC |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 30 |
| Outer Diameter | 39 |
| Height | 7 |
| Dimensions | 30 x 39 x 7 |
| DIN 3760 | 30x39x7 |

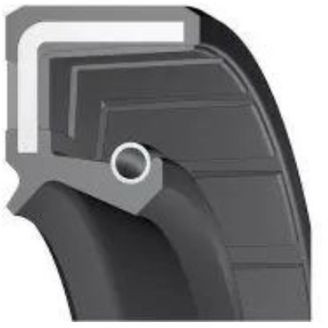

This Oil Seal has the following Dimensions: 30x39x7mm, and the color is Black. The Material of this item is NBR – Nitrile The Material of the house is Steel. The model is Oil Seal TC. The Article number of this Oil Seal 30 x 39 x 7 is 64859. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 39mm and in the color Steel. The Hardness of this Oil Seal 30x39x7 TC NBR - Nitrile Black OSS64859 is 30.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TC and has an operating temperature range from TC to . O-rings 218644 are indicated as 64859 and have a DIN 3771 Size of 39. This item is equal to 30x39x7 and has an Steel Approval. The chemical name of this Oring is Yes.
