| In stock | Yes, 367 pcs |
| Article number | 77816 |
| Color 2 | Red |
| Minimum Order Qty | 10 |
| Model | TC |
| Type | Oil Seal |
| Brand Types | |
| B+S | TR-E |
| Chicago R | HMSA7 |
| Dichtomatik | WAS |
| Ebele | RP |
| Elring | AS |
| Eriks | RST |
| FP Paris | GP |
| Freudenberg | BASL |
| Gaco | FA |
| GOETZE | 827S |
| KACO | DGS |
| Kimman | KAS |
| Kramp | CC |
| National | 32 |
| NOK | TC |
| Paulstra | IEL |
| Pioneer W | R23 |
| Rolf | RP |
| Sealsupply | OS-A11 |
| Stefa | CC |
| Taiwan | TC |
| Vota | ASL |
| Design | |
| Rotation | R-DRAL |
| Material | VMQ - SILICONE |
| Spring | Yes |
| Dust lip | Yes |
| Color | Red |
| Type | TC |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 36.53 |
| Outer Diameter | 52.4 |
| Height | 12.7 |
| Dimensions | 36,53 x 52,4 x 12,7 |
| DIN 3760 | 36,53x52,4x12,7 |

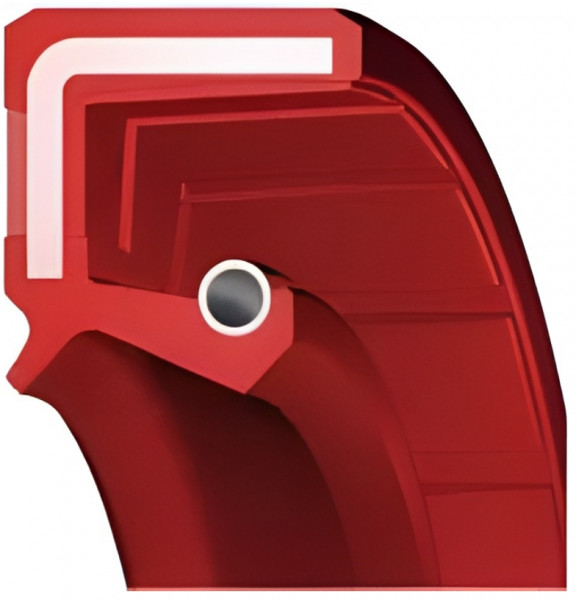

This Oil Seal has the following Dimensions: 36,53x52,4x12,7mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is . The model is Oil Seal TC. The Article number of this Oil Seal 36,53 x 52,4 x 12,7 is 77816. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 52.4mm and in the color . The Hardness of this Oil Seal 36,53x52,4x12,7 TC VMQ - SILICONE Red OSS77816 is 36.53.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TC and has an operating temperature range from TC to . O-rings 6580940 are indicated as 77816 and have a DIN 3771 Size of 52.4. This item is equal to 36,53x52,4x12,7 and has an Approval. The chemical name of this Oring is Yes.
