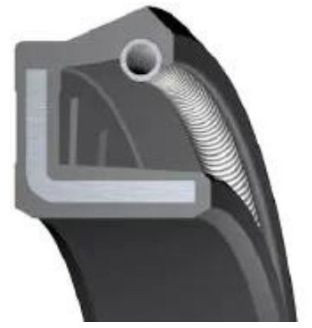

Oil Seal 38x22x8 OS-O18 NBR - Nitrile Black OSS77121

Oil Seal 38x22x8 OS-O18 NBR - Nitrile Black OSS77121
Rotation
Inside Diameter 38
Outer Diameter 22
Height 8
Material NBR - Nitrile
Spring Yes
Color Black
Item no. 77121
Stock 46 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
In stock Yes, 46 pcs
Article number 77121
Color 2Black
Minimum Order Qty10
ModelOS-O18
TypeOil Seal
Brand Types
SealsupplyOS-O18
Design
MaterialNBR - Nitrile
SpringYes
ColorBlack
Dust lipNo
TypeOS-O18
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter38
Outer Diameter22
Height8
DIN 376038x22x8
Dimensions38 x 22 x 8
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 38x22x8mm, and the color is Black. The Material of this item is NBR – Nitrile The Material of the house is . The model is Oil Seal OS-O18. The Article number of this Oil Seal 38 x 22 x 8 is 77121. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 22mm and in the color . The Hardness of this Oil Seal 38x22x8 OS-O18 NBR - Nitrile Black OSS77121 is 38.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in and has an operating temperature range from OS-O18 to . O-rings 6566935 are indicated as 77121 and have a DIN 3771 Size of 22. This item is equal to 38x22x8 and has an Approval. The chemical name of this Oring is Yes.
