Article number | 41316 |
Color 2 | Red |
Material options | NBR (or special materials: FKM, Silicone, ACM, HNBR, CR & EPDM) |
Minimum Order Qty | 10 |
Model | SC |
Type | Oil Seal |
Brand Types | |
B+S | TR-A |
Chicago R | HMS4 |
Dichtomatik | WA |
Ebele | R |
Elring | A |
Eriks | R |
FP Paris | G |
Freudenberg | BA |
Gaco | A |
GOETZE | 827 N |
KACO | DG |
Kimman | KA |
Kramp | CB |
National | 35 |
NOK | SC |
Paulstra | IE |
Pioneer W | R 21 |
Rolf | R |
Sealsupply | OS-A10 |
Stefa | CB |
Taiwan | SC |
Vota | A |
Design | |
Material | VMQ - SILICONE |
Housing Material | Carbon steel according to DIN EN 18199 |
Material Spring | Spring steel according to DIN EN 10270-8061 |
Spring | Yes |
Dust lip | No |
Color | Red |
Type | SC |
Design information (Housing bore) | |
Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
Housing Tolerance | ISO H8 |
Design information (Shaft) | |
Shaft Hardness | min. 45 HRC |
Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
Shaft Tolerance | ISO h11 |
Dimensions | |
Inside Diameter | 40 |
Outer Diameter | 52 |
Height | 7 |
Dimensions | 40 x 52 x 7 |
DIN 3760 | 40x52x7 |

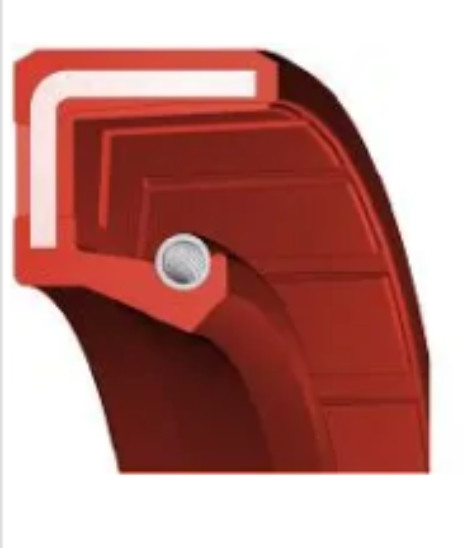

This Oil Seal has the following Dimensions: 40x52x7mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal SC. The Article number of this Oil Seal 40 x 52 x 7 is 41316. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 52mm and in the color Carbon steel according to DIN EN 18199. The Hardness of this Oil Seal 40x52x7 SC VMQ - SILICONE Red OSS41316 is 40.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in SC and has an operating temperature range from SC to . O-rings 6580996 are indicated as 41316 and have a DIN 3771 Size of 52. This item is equal to 40x52x7 and has an Spring steel according to DIN EN 10270-8061 Approval. The chemical name of this Oring is Yes.
