Stock | Delivery time |
---|---|
16 | On workingdays before 13:00, shipped the same day |
28.891 | Shipped in 35 - 42 - Day(s) |
Ordered Before 13:00, shipped the same day
Quantity | Per piece |
---|---|
11+ | € 4,54 |
100+ | € 4,16 |
250+ | € 3,78 |
500+ | € 3,29 |
In stock | Yes, 28907 pcs |
Article number | 76859 |
Color 2 | Blue |
Minimum Order Qty | 10 |
Model | TC |
Seal | Oil Seal |
Brand Types | |
B+S | TR-E |
Chicago R | HMSA7 |
Dichtomatik | WAS |
Ebele | RP |
Elring | AS |
Eriks | RST |
FP Paris | GP |
Freudenberg | BASL |
Gaco | FA |
GOETZE | 827S |
KACO | DGS |
Kimman | KAS |
Kramp | CC |
National | 32 |
NOK | TC |
Paulstra | IEL |
Pioneer W | R23 |
Rolf | RP |
Sealsupply | OS-A11 |
Stefa | CC |
Taiwan | TC |
Vota | ASL |
Design | |
Material | NBR - Nitrile |
Spring | Yes |
Dust lip | Yes |
Color | Blue |
Type | TC |
Design information (Housing bore) | |
Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
Housing Tolerance | ISO H8 |
Design information (Shaft) | |
Shaft Hardness | min. 45 HRC |
Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
Shaft Tolerance | ISO h11 |
Dimensions | |
Inside Diameter | 45.6 |
Outer Diameter | 56 |
Height | 7 |
Dimensions | 45,6 x 56 x 7 |
DIN 3760 | 45,6x56x7 |

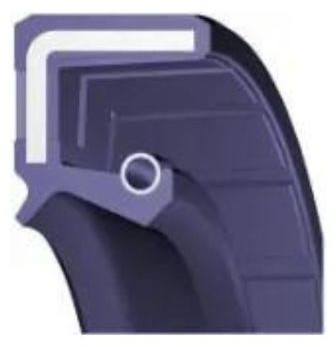

This Oil Seal has the following Dimensions: 45,6x56x7mm, and the color is Blue. The Material of this item is NBR – Nitrile The Material of the house is . The model is Oil Seal TC. The Article number of this Oil Seal 45,6 x 56 x 7 is 76859. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 56mm and in the color . The Hardness of this Oil Seal 45,6x56x7 TC NBR - Nitrile Blue OSS76859 is 45.6.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TC and has an operating temperature range from TC to . O-rings 6558328 are indicated as 76859 and have a DIN 3771 Size of 56. This item is equal to 45,6x56x7 and has an Approval. The chemical name of this Oring is Yes.
