| Quantity | Per piece |
|---|---|
| 1+ | € 6,95 |
| 5+ | € 6,34 |
| 10+ | € 6,03 |
| 50+ | € 5,08 |
| 100+ | € 4,81 |
| 250+ | € 5,50 |
| 500+ | € 5,84 |
| Article number | 54549 |
| Color 2 | Black |
| Minimum Order Qty | 2 |
| Model | TB |
| Type | Oil Seal |
| Brand Types | |
| B+S | TR-D |
| Chicago R | CRW1 |
| Dichtomatik | WBS |
| Ebele | B1SL |
| Elring | BS |
| Eriks | MST |
| FP Paris | L1P |
| Freudenberg | B1 SL |
| GOETZE | 822 S |
| KACO | DFS |
| Kimman | KBS |
| Kramp | BC |
| National | 47 |
| NOK | TB |
| Paulstra | EEL |
| Pioneer W | R6 |
| Sealsupply | OS-B11 |
| Stefa | BC |
| Taiwan | TB |
| Vota | BSL |
| Design | |
| Material | ACM |
| Housing Material | Steel |
| Material Spring | Steel |
| Spring | Yes |
| Dust lip | Yes |
| Color | Black |
| Type | TB |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 48.41 |
| Outer Diameter | 69.9 |
| Height | 9.52 |
| DIN 3760 | 48,41x69,9x9,52 |
| Dimensions | 48,41 x 69,9 x 9,52 |

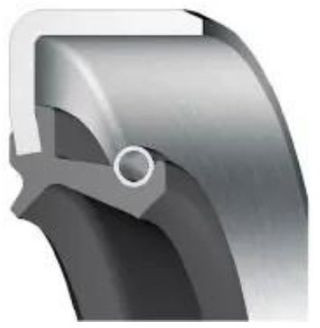

This Oil Seal has the following Dimensions: 48,41x69,9x9,52mm, and the color is Black. The Material of this item is ACM The Material of the house is Steel. The model is Oil Seal TB. The Article number of this Oil Seal 48,41 x 69,9 x 9,52 is 54549. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 69.9mm and in the color Steel. The Hardness of this Oil Seal 48,41x69,9x9,52 TB ACM Black OSS54549 is 48.41.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TB and has an operating temperature range from TB to . O-rings 250788 are indicated as 54549 and have a DIN 3771 Size of 69.9. This item is equal to 48,41x69,9x9,52 and has an Steel Approval. The chemical name of this Oring is Yes.
