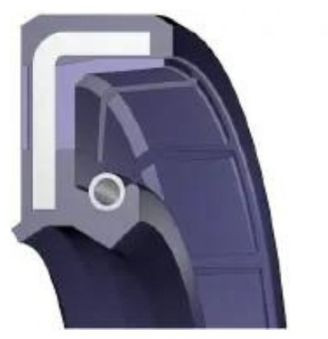

Oil Seal 49,2x63,5x8 TCN NBR - Nitrile Blue OSS73883

Oil Seal 49,2x63,5x8 TCN NBR - Nitrile Blue OSS73883
Rotation
Inside Diameter 49.2
Outer Diameter 63.5
Height 8
Material NBR - Nitrile
Spring Yes
Dust lip Yes
Color Blue
Item no. 73883
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
Article number 73883
Color 2Blue
Minimum Order Qty2
ModelTCN
TypeOil Seal
Brand Types
DichtomatikWASY
EriksRST-D
FP ParisGAP
FreudenbergBABSL
GOETZE827 SK
KACODGSP
KimmanKAS-P
KrampBABSL
NOKTCN
SealsupplyOS-N21
StefaCF
TaiwanTCV
Design
MaterialNBR - Nitrile
SpringYes
Dust lipYes
ColorBlue
TypeTCN High Pressure
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter49.2
Outer Diameter63.5
Height8
DIN 376049,2x63,5x8
Dimensions49,2 x 63,5 x 8
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 49,2x63,5x8mm, and the color is Blue. The Material of this item is NBR – Nitrile The Material of the house is . The model is Oil Seal TCN. The Article number of this Oil Seal 49,2 x 63,5 x 8 is 73883. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 63.5mm and in the color . The Hardness of this Oil Seal 49,2x63,5x8 TCN NBR - Nitrile Blue OSS73883 is 49.2.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TCV and has an operating temperature range from TCN High Pressure to . O-rings 475605 are indicated as 73883 and have a DIN 3771 Size of 63.5. This item is equal to 49,2x63,5x8 and has an Approval. The chemical name of this Oring is Yes.
