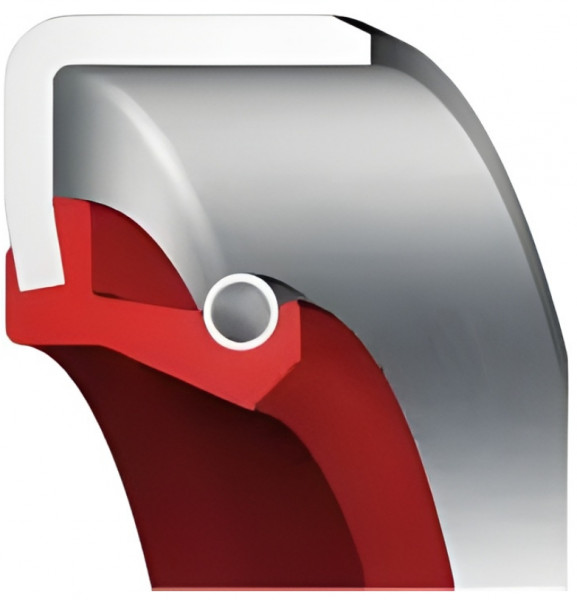

Oil Seal 60x70x7 SB VMQ - SILICONE Red OSS59739

Oil Seal 60x70x7 SB VMQ - SILICONE Red OSS59739
Rotation
Inside Diameter 60
Outer Diameter 70
Height 7
Material VMQ - SILICONE
Housing Material Steel
Material Spring Steel
Spring Yes
Color Red
Item no. 59739
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
Article number 59739
Color 2Red
Minimum Order Qty2
ModelSB
TypeOil Seal
Brand Types
B+STR-C
Chicago RCRW1
DichtomatikWB
EbeleB1
ElringB
EriksM
FP ParisL1
FreudenbergB1
GacoABI
GOETZE822 N
KACODF
KimmanKB
KrampBB
National48
NOKSB
PaulstraEE
Pioneer WR4
RolfRM
SealsupplyOS-B10
StefaBB
TaiwanSB
VotaB
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
Material SpringSteel
SpringYes
ColorRed
TypeSB
Design information (Housing bore)
Housing RoughnessRa = 0.8 - 3.2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter60
Outer Diameter70
Height7
Dimensions60 x 70 x 7
DIN 376060x70x7
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 60x70x7mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal SB. The Article number of this Oil Seal 60 x 70 x 7 is 59739. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 70mm and in the color Steel. The Hardness of this Oil Seal 60x70x7 SB VMQ - SILICONE Red OSS59739 is 60.The alternative names of the compound are and they are mostly produced by . The O-ring is commonly used in SB and has an operating temperature range from SB to . O-rings 6581474 are indicated as 59739 and have a DIN 3771 Size of 70. This item is equal to 60x70x7 and has an Steel Approval. The chemical name of this Oring is Yes.
