| In stock | Yes, 84 pcs |
| Article number | 49745 |
| Color 2 | Red |
| Minimum Order Qty | 2 |
| Model | SA |
| Type | Oil Seal |
| Brand Types | |
| B+S | TR-B |
| Chicago R | CRWH1 |
| Dichtomatik | WC |
| Ebele | B2 |
| Elring | C |
| Eriks | GV |
| FP Paris | L2 |
| Freudenberg | B2 |
| GOETZE | 824 N |
| KACO | DKF |
| Kimman | KC |
| Kramp | DB |
| National | 45 |
| NOK | SA |
| Paulstra | EEP |
| Pioneer W | R1 |
| Rolf | RC |
| Sealsupply | OS-C10 |
| Stefa | DB |
| Taiwan | SA |
| Vota | C |
| Design | |
| Material | VMQ - SILICONE |
| Housing Material | Steel |
| Material Spring | Steel |
| Spring | Yes |
| Dust lip | No |
| Color | Red |
| Type | SA |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm |
| Housing Tolerance | ISO H1924 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 65 |
| Outer Diameter | 90 |
| Height | 10 |
| DIN 3760 | 65x90x10 |
| Dimensions | 65 x 90 x 10 |

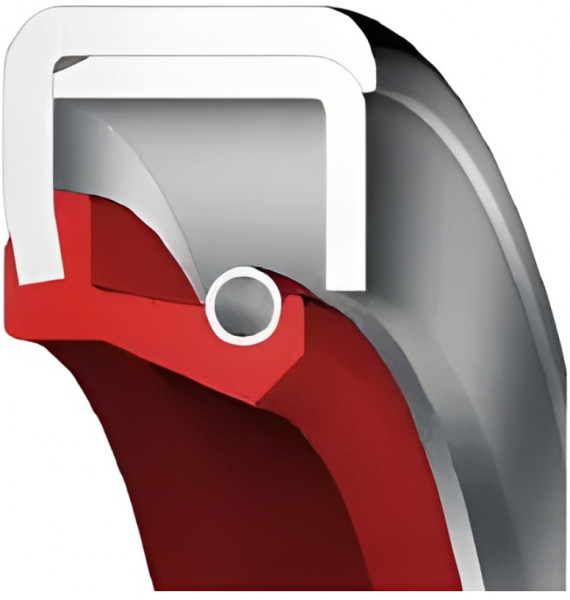

This Oil Seal has the following Dimensions: 65x90x10mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal SA. The Article number of this Oil Seal 65 x 90 x 10 is 49745. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 90mm and in the color Steel. The Hardness of this Oil Seal 65x90x10 SA VMQ - SILICONE Red OSS49745 is 65.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in SA and has an operating temperature range from SA to . O-rings 6581588 are indicated as 49745 and have a DIN 3771 Size of 90. This item is equal to 65x90x10 and has an Steel Approval. The chemical name of this Oring is Yes.
