Deliverable from 02-01-2025
All items marked with a * are required.
| Quantity | Per piece |
|---|---|
| 4+ | € 2,59 |
| 50+ | € 1,19 |
| 100+ | € 1,10 |
| 250+ | € 1,00 |
| 500+ | € 0,95 |
| 1000+ | € 0,87 |
| 2500+ | € 0,75 |
| 5000+ | € 0,66 |
| Article number | 71934 |
| Color 2 | Blue |
| Minimum Order Qty | 2 |
| Model | TCN |
| Type | Oil Seal |
| Brand Types | |
| Dichtomatik | WASY |
| Eriks | RST-D |
| FP Paris | GAP |
| Freudenberg | BABSL |
| GOETZE | 827 SK |
| KACO | DGSP |
| Kimman | KAS-P |
| Kramp | BABSL |
| NOK | TCN |
| Sealsupply | OS-N21 |
| Stefa | CF |
| Taiwan | TCV |
| Design | |
| Material | NBR - Nitrile |
| Spring | Yes |
| Dust lip | Yes |
| Color | Blue |
| Type | TCN High Pressure |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 7 |
| Outer Diameter | 22 |
| Height | 7 |
| DIN 3760 | 7x22x7 |
| Dimensions | 7 x 22 x 7 |

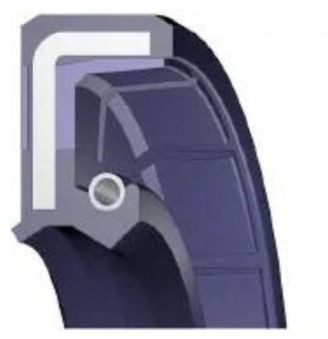

This Oil Seal has the following Dimensions: 7x22x7mm, and the color is Blue. The Material of this item is NBR – Nitrile The Material of the house is . The model is Oil Seal TCN. The Article number of this Oil Seal 7 x 22 x 7 is 71934. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 22mm and in the color . The Hardness of this Oil Seal 7x22x7 TCN NBR - Nitrile Blue OSS71934 is 7.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TCV and has an operating temperature range from TCN High Pressure to . O-rings 326859 are indicated as 71934 and have a DIN 3771 Size of 22. This item is equal to 7x22x7 and has an Approval. The chemical name of this Oring is Yes.
