| Stock | Delivery time |
|---|---|
| 192 | Shipped in 35 - 42 - Day(s) |
Shipped in 35 - 42 - Day(s)
| Quantity | Per piece |
|---|---|
| 1+ | € 7,17 |
| 100+ | € 6,49 |
| 250+ | € 5,95 |
| 500+ | € 5,35 |
| In stock | Yes, 192 pcs |
| Article number | 52477 |
| Color 2 | Blue |
| Minimum Order Qty | 2 |
| Model | TB |
| Type | Oil Seal |
| Brand Types | |
| B+S | TR-D |
| Chicago R | CRW1 |
| Dichtomatik | WBS |
| Ebele | B1SL |
| Elring | BS |
| Eriks | MST |
| FP Paris | L1P |
| Freudenberg | B1 SL |
| GOETZE | 822 S |
| KACO | DFS |
| Kimman | KBS |
| Kramp | BC |
| National | 47 |
| NOK | TB |
| Paulstra | EEL |
| Pioneer W | R6 |
| Sealsupply | OS-B11 |
| Stefa | BC |
| Taiwan | TB |
| Vota | BSL |
| Design | |
| Material | NBR - Nitrile |
| Housing Material | Steel |
| Material Spring | Steel |
| Spring | Yes |
| Dust lip | Yes |
| Color | Blue |
| Type | TB |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 85 |
| Outer Diameter | 105 |
| Height | 10 |
| DIN 3760 | 85x105x10 |
| Dimensions | 85 x 105 x 10 |

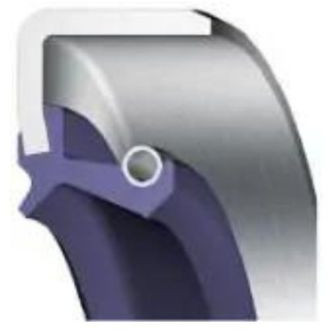

This Oil Seal has the following Dimensions: 85x105x10mm, and the color is Blue. The Material of this item is NBR – Nitrile The Material of the house is Steel. The model is Oil Seal TB. The Article number of this Oil Seal 85 x 105 x 10 is 52477. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 105mm and in the color Steel. The Hardness of this Oil Seal 85x105x10 TB NBR - Nitrile Blue OSS52477 is 85.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TB and has an operating temperature range from TB to . O-rings 47580 are indicated as 52477 and have a DIN 3771 Size of 105. This item is equal to 85x105x10 and has an Steel Approval. The chemical name of this Oring is Yes.
