| Stock | Delivery time |
|---|---|
| 156 | Shipped in 35 - 42 - Day(s) |
Shipped in 35 - 42 - Day(s)
| Quantity | Per piece |
|---|---|
| 5+ | € 5,49 |
| 100+ | € 6,05 |
| 250+ | € 5,55 |
| 500+ | € 4,99 |
| In stock | Yes, 156 pcs |
| Article number | 76467 |
| Color 2 | Blue |
| Minimum Order Qty | 10 |
| Model | TC |
| Type | Oil Seal |
| Brand Types | |
| B+S | TR-E |
| Chicago R | HMSA7 |
| Dichtomatik | WAS |
| Ebele | RP |
| Elring | AS |
| Eriks | RST |
| FP Paris | GP |
| Freudenberg | BASL |
| Gaco | FA |
| GOETZE | 827S |
| KACO | DGS |
| Kimman | KAS |
| Kramp | CC |
| National | 32 |
| NOK | TC |
| Paulstra | IEL |
| Pioneer W | R23 |
| Rolf | RP |
| Sealsupply | OS-A11 |
| Stefa | CC |
| Taiwan | TC |
| Vota | ASL |
| Design | |
| Material | NBR - Nitrile |
| Spring | Yes |
| Dust lip | Yes |
| Color | Blue |
| Type | TC |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 88 |
| Outer Diameter | 110 |
| Height | 12 |
| Dimensions | 88 x 110 x 12 |
| DIN 3760 | 88x110x12 |

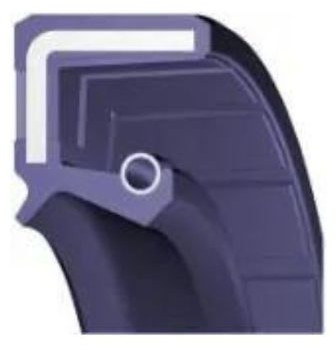

This Oil Seal has the following Dimensions: 88x110x12mm, and the color is Blue. The Material of this item is NBR – Nitrile The Material of the house is . The model is Oil Seal TC. The Article number of this Oil Seal 88 x 110 x 12 is 76467. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 110mm and in the color . The Hardness of this Oil Seal 88x110x12 TC NBR - Nitrile Blue OSS76467 is 88.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TC and has an operating temperature range from TC to . O-rings 6531494 are indicated as 76467 and have a DIN 3771 Size of 110. This item is equal to 88x110x12 and has an Approval. The chemical name of this Oring is Yes.
