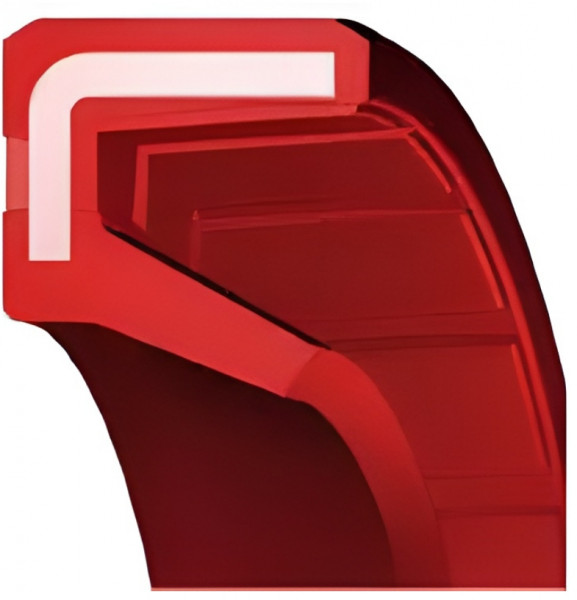

Oil Seal 8x22x5 VC VMQ - SILICONE Red OSS59784

Oil Seal 8x22x5 VC VMQ - SILICONE Red OSS59784
Rotation
Inside Diameter 8
Outer Diameter 22
Height 5
Material VMQ - SILICONE
Housing Material Steel
Color Red
Item no. 59784
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
Article number 59784
Color 2Red
Minimum Order Qty10
ModelVC
TypeOil Seal
Brand Types
DichtomatikWAO
ElringADF
EriksRZV
FP ParisGSM
FreudenbergBA OF
GacoSA
GOETZE827 NO
KACODE
KimmanKAOW
KrampCD
NOKVC
PaulstraIO
Pioneer WR26
RolfLSM
SealsupplyOS-A12
StefaCD
TaiwanVC
VotaAOF
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
ColorRed
TypeVC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter8
Outer Diameter22
Height5
DIN 37608x22x5
Dimensions8 x 22 x 5
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 8x22x5mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal VC. The Article number of this Oil Seal 8 x 22 x 5 is 59784. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 22mm and in the color Steel. The Hardness of this Oil Seal 8x22x5 VC VMQ - SILICONE Red OSS59784 is 8.The alternative names of the compound are and they are mostly produced by . The O-ring is commonly used in VC and has an operating temperature range from VC to . O-rings 6582357 are indicated as 59784 and have a DIN 3771 Size of 22. This item is equal to 8x22x5 and has an Approval. The chemical name of this Oring is .
