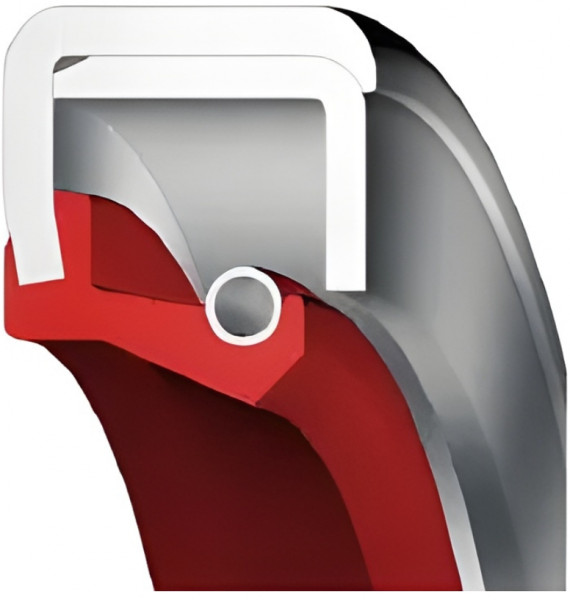

Oil Seal 92,07x111,11x11,11 SA VMQ - SILICONE Red OSS49768

Oil Seal 92,07x111,11x11,11 SA VMQ - SILICONE Red OSS49768
Rotation
Inside Diameter 92.07
Outer Diameter 111.11
Height 11.11
Material VMQ - SILICONE
Housing Material Steel
Material Spring Steel
Spring Yes
Dust lip No
Color Red
Item no. 49768
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Article number 49768
Color 2Red
Minimum Order Qty2
ModelSA
TypeOil Seal
Brand Types
B+STR-B
Chicago RCRWH1
DichtomatikWC
EbeleB2
ElringC
EriksGV
FP ParisL2
FreudenbergB2
GOETZE824 N
KACODKF
KimmanKC
KrampDB
National45
NOKSA
PaulstraEEP
Pioneer WR1
RolfRC
SealsupplyOS-C10
StefaDB
TaiwanSA
VotaC
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
Material SpringSteel
SpringYes
Dust lipNo
ColorRed
TypeSA
Design information (Housing bore)
Housing RoughnessRa = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm
Housing ToleranceISO H1935
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter92.07
Outer Diameter111.11
Height11.11
DIN 376092,07x111,11x11,11
Dimensions92,07 x 111,11 x 11,11
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 92,07x111,11x11,11mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal SA. The Article number of this Oil Seal 92,07 x 111,11 x 11,11 is 49768. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 111.11mm and in the color Steel. The Hardness of this Oil Seal 92,07x111,11x11,11 SA VMQ - SILICONE Red OSS49768 is 92.07.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in SA and has an operating temperature range from SA to . O-rings 6581905 are indicated as 49768 and have a DIN 3771 Size of 111.11. This item is equal to 92,07x111,11x11,11 and has an Steel Approval. The chemical name of this Oring is Yes.
